模拟对讲机、手机、基站等射频信号，耦合到被试品上面所造成的射频干扰。

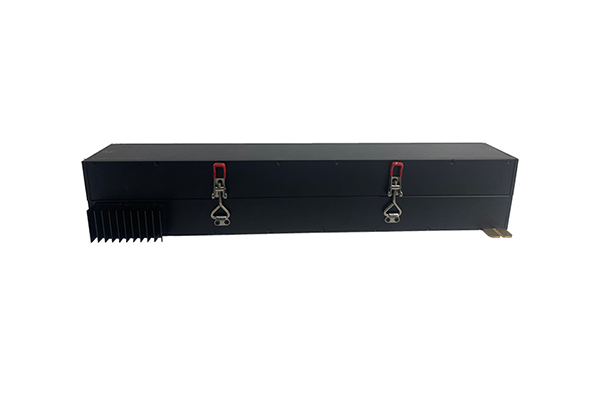

ES-TS120 电磁注入钳

ES-TS120电磁注入钳主要应用于射频场感应的传导骚扰抗扰度和骚扰功率等测试，采用特殊的磁性材料，具有插入损耗小，注入效率高的特点。

◆   Product Features

1、频率范围：150kHz~300MHz
2、最大线径：20mm
3、适用于任意信号线试验
4、80%AM幅度调制情况下，支持10Vrms测试需求
5、工艺精致

◆   Compliant with standards
IEC61000-4-6  GB/T17626.6
◆   Technical Parameter
频率范围 150kHz~230MHz
插入损耗 ＜10dB
线径 20mm
阻抗 50Ω
最大输入功率 0.15MHz-100MHz: 100W for 15min
100MHz-230MHz :100W for 3min
注入接口 N头
尺寸 (长）650mm×（宽）100mm×（高）120mm
