IEC 61000-4-6 — Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-6 — Immunity to conducted disturbances, induced by radio-frequency fields

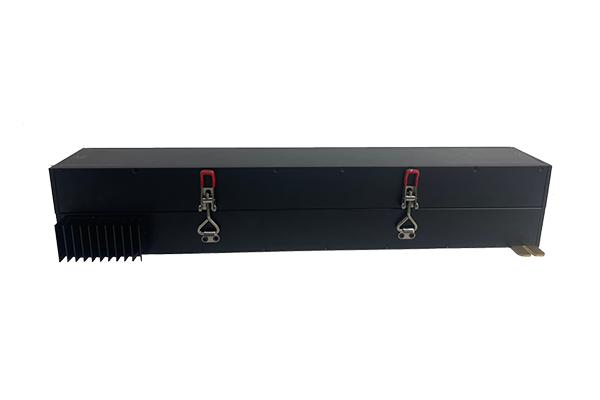

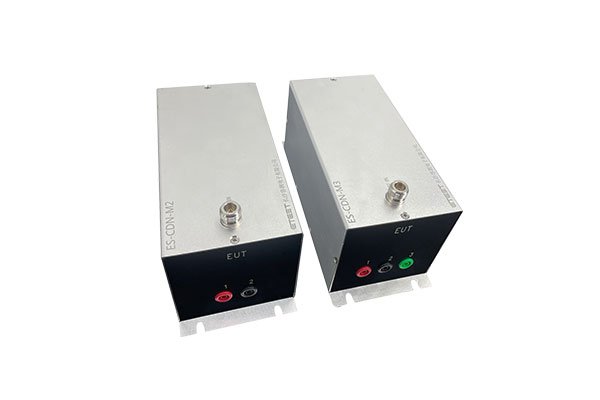

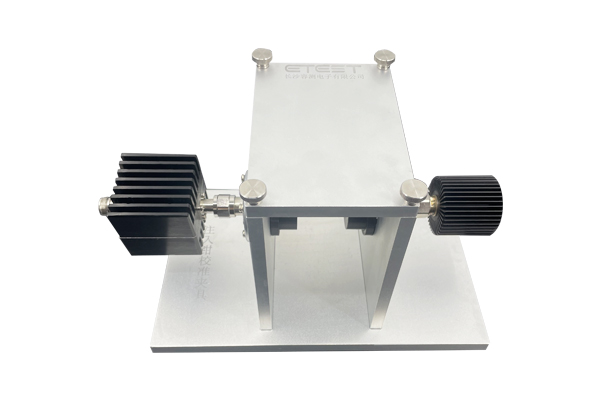

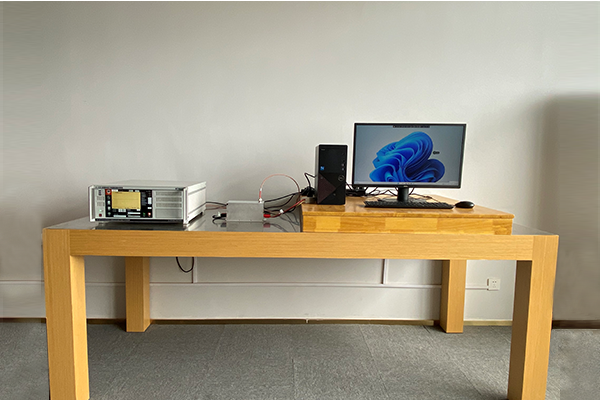

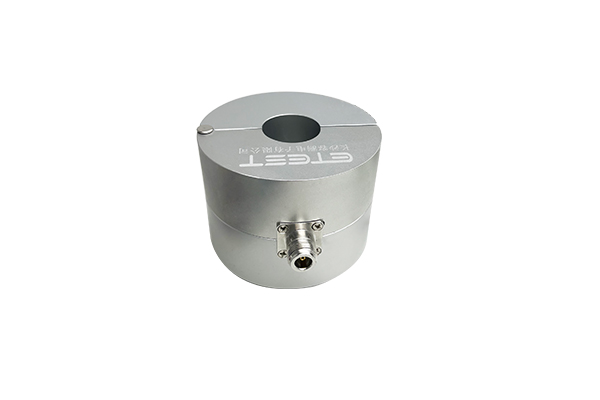

The ES-608 RF Conducted Immunity Simulation Test System has extremely high injection efficiency. The coupling decoupling network, electromagnetic clamp, and current clamp method all support the 10V test requirements. It is widely used in industries such as healthcare, power, industrial control, new energy charging stations, and communications. It complies with the requirements of IEC 61000-4-6, GB/T 17626.6, and CISPR 35 standards.
1. Integrated design, including built-in power amplifier, signal source, power meter, and directional coupler.
2. 10.1-inch intelligent capacitive touch display screen, easy to operate.
3. System frequency range: 150kHz - 230MHz.
4. CDN method, electromagnetic clamp method, and current clamp method all support above 10Vrms.
5. Supports 1 - 99% amplitude modulation, modulation frequency 1Hz - 10kHz.
6. The entire system calibration time is less than 30 seconds.
7. Staying time 0.5s - 999s.
8. Supports unsaturated power verification, in accordance with IEC61000-4-6 2023 standard.
9. Automatically stores test reports, report format can be freely edited.
10. Built-in 50W and 100W linear amplifiers.
11. Supports arbitrary changes in calibration or test curves.
12. Supports testing in any frequency band.
