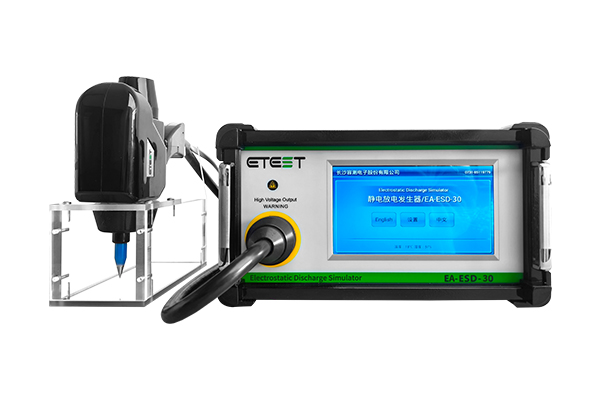

Automotive strip testing Handheld transmitter Low frequency magnetic field/conduction/radiation emission The EA-ESD-30 electrostatic discharge simulator has a maximum test voltage of 30kV, supports contact discharge and air discharge modes, and supports 20pps scanning mode. Exquisitely crafted and compact, it is widely used in industries such as automobiles, low-voltage electrical appliances, industrial products, and communication.
1. The maximum output voltage can reach up to 30kV
2. The contact discharge and air discharge modes can be interchanged
3. Standard configuration includes an automotive electronic coupling network and an air discharge mushroom head
4. It adopts dual high-voltage power supplies, which greatly extends the service life
5. Automatic switching between positive and negative voltages
6. 7-inch color LCD display, easy to operate
7. The air discharge voltage holding time is more than 5 seconds
8. Precise voltage output
9. Multiple testing methods are available, supporting single, multiple, and 20pps scanning modes
| 输出电压 | 接触放电 | 0.2kV－30kV | |
| 空气放电 | 0.2kV－30kV | ||
| 电压保持时间 | ≥5s | ||
| 输出极性 | 正、负、先正后负、先负后正 | ||
| 触发模式 | SINGLE | 单次放电 | |
| COUNT | 按设定的放电次数放电 | ||
| 20pps | 固定为20次/秒 | ||
| 放电模式 | 接触放电、空气放电 | ||
| 放电间隔 | 0.05s－99.99s（20pps模式下，放电间隔为0.05s） | ||
| 放电次数 | 1－9999 | ||
| 放电电极 | 尖头（接触放电电极）、圆头（空气放电电极)、蘑菇枪头 | ||
| 放电模块 | 150pF/2000Ω 、150pF/330Ω、330pF/330Ω 、330pF/2000Ω（可更换） | ||
| 接触放电波形 | 符合EN/IEC 61000-4-2，GB/T 17626.2标准 | ||
| 上升时间 | 0.8ns ±25％ | ||
| 使用环境 | 温度：15°C－35°C，相对湿度30%－60% | ||
| 系统电源 | AC：220±10％，50/60Hz，≤200W | ||
| 外形尺寸 | 宽260mm×高170mm×深360mm | ||
| 整机重量 | 约8kg | ||
